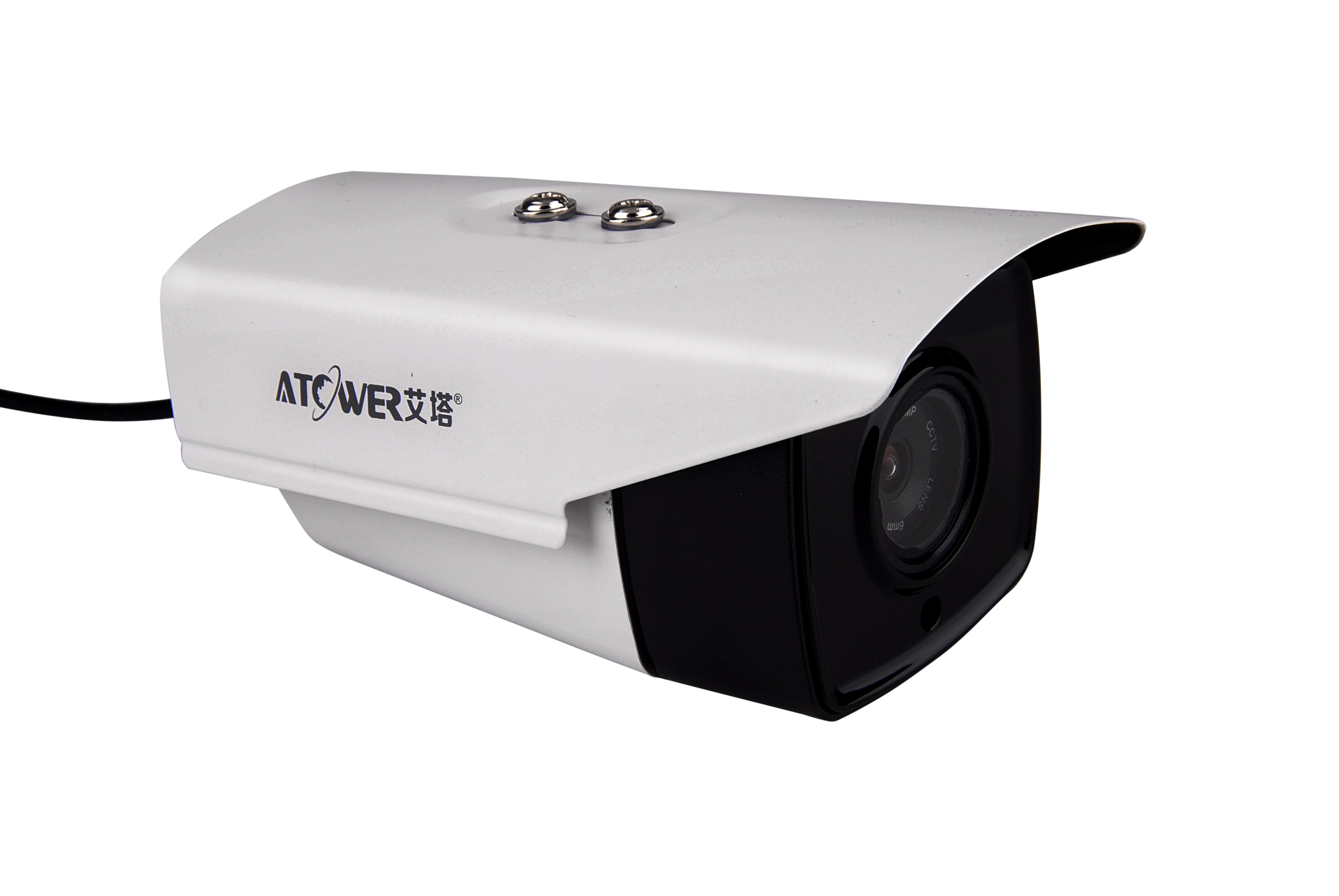

※金屬槍機
※臺灣原產晶元燈芯，單/雙顆大功率42μ,寬電壓恒流控制；
※標配3.6mmIR三百萬高清鏡頭,鏡頭3.6mm/8mm/可選；
※顏色:白色； 夜視距離30/40-60米；
※CMOS方案內置IR-CUT，雙濾光片切換，穩定可靠；
※900TVL方案是市場上最清晰的原裝進口CCD方案，低照、防雷、標配百萬高清鏡頭，OSD菜單功能可選；
Technical Parameters
Model
C2*80C
C2*12C
C2*70
C2*90
Image Sensor
800TVL
1200TVL
700TVL
900TVL
Horizontal Resolution
1/3" CMOS
1/3" CMOS
1/3" SONY
1/3" HDIS
Pixels
PAL:500(H)×582(V) NTSC:510(H)×492(V)
PAL:1020(H)×596(V) NTSC:1029(H)×508(V)
PAL:752(H)×582(V) NTSC:768(H)×494(V)
PAL:720(H)*576(V) NTSC:720(H)*480(V)
System
PAL/NTSC optional
Sync System
Internal
Usable illumination
0LUX(Infrared lamp open)
S/N Ratio
≥50B (AGC OFF)
≥54dB (AGC OFF)
Gamma correction
0.45
Video out
1.0Vp-p/75Ω
Scanning system
PAL:625 Lines, 50 Field/Sec;NTSC:525 Lines, 60 Field/Sec
Electronic shutter
Auto: 1/50-1/100,000sec(PAL), 1/60-1/100,000sec(NTSC)
Work environment
-10℃ ~ +50℃ RH95% Max
Storage Temperature
-20℃ ~ +60℃ RH95% Max
White Balance
Auto
Power supply
DC12V±5%
